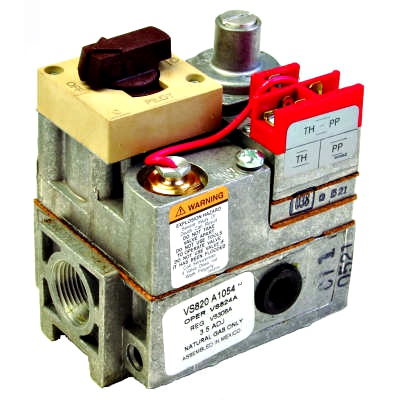

Honeywell VS820A1336 Combination Millivolt Gas Valve 3/4

Honeywell VS820A1336 Combination Millivolt Gas Valve 3/4
Images for general purposes only. Actual may be different than depicted.
Honeywell VS820A1336 Combination Millivolt Gas Valve 3/4

Honeywell VS820A1336 Combination Millivolt Gas Valve 3/4

SKU: VS820A1336
In Stock 21
Rating:
$390.92 /ea
Qty of 6 - $381.46 /ea
Qty of 12 - $372.00 /ea
0
$0.00
0
$0.00
0
Honeywell VS820A1336 Combination Millivolt Gas Valve 3/4

750mV Standard Opening Gas Valve. 3/4 x 3/4" with 1/2" side outlets. Set 10.0" WC. These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mV Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.

Features:

Include pilot flow adjustment screw. Easy to install, adjust and service; all adjustments and connections are accessible from top of control. Add separate energy cutoff (ECO) where codes call for dual safety shutoff. Complete safety shutoff on pilot flame failure. LITE-RITE (OFF-PILOT-ON) lighting sequence.
Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Operating Temperature Range 0 C to 79 C (32 F to 175 F)
Pressure Ratings 1/2 psi (3.5 kPa)
Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing
Pressure Regulator Standard

Following are the Attached files for this product:

Honeywell VS820A1336 Gas Valve Data Sheet
