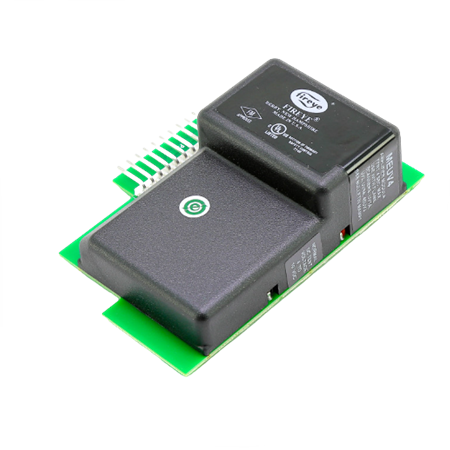

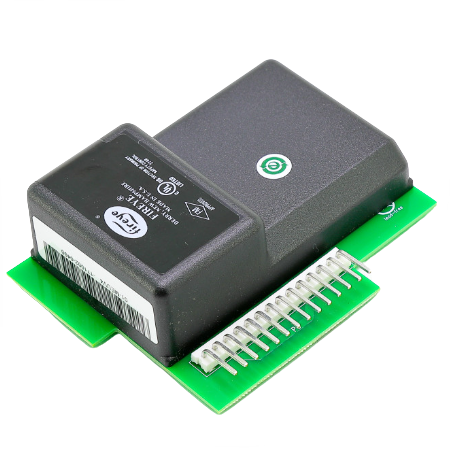

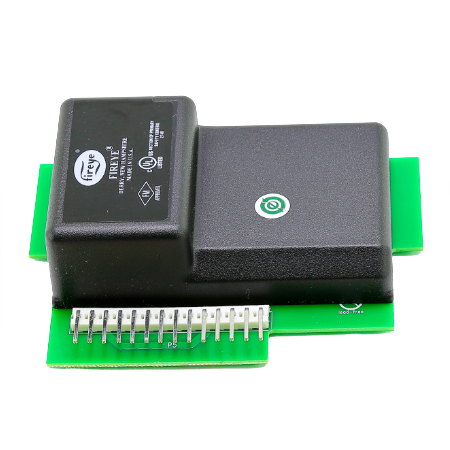

Fireye MEUV4 UV Amplifier Module 4 second FFRT for UV1, UV2, 45UV3

Fireye MEUV4 UV Amplifier Module 4 second FFRT for UV1, UV2, 45UV3
Images for general purposes only. Actual may be different than depicted.
Fireye MEUV4 UV Amplifier Module 4 second FFRT for UV1, UV2, 45UV3 Fireye  MEUV4 Amplifier Module for MicroM Chassis Fireye MEUV4 MicroM Control Amplifier Module with Test Jack 4-10VDC

Fireye MEUV4 UV Amplifier Module 4 second FFRT for UV1, UV2, 45UV3

SKU: MEUV4
Rating:
Quantity Price Stock
21
21
$75.81     /ea
21
0
$0.00
0
$0.00
0
MEUV4
The Fireye MEUV4 is a non-self-checking UV amplifier module that has a Flame Failure Response Time (FFRT) of 4 seconds.  The unit features a test jack with 4 to 10VDC test voltage for flame signal measurement while in operation.

The module is capable of flame scanning when used together with Fireye standard ultraviolet scanners such as Model UV1A, UV2, UV8A, and 45UV3-1050.  UL Listed and FM-approved.

All MicroM Amplifier Modules are constructed with a plug-in design for easy installation on Fireye MicroM Control.

The MEUV4 is applicable to the following Fireye MicroM Modular Chassis:

Approvals UL Listed and FM Approved
Flame Failure Response Time 4 seconds
Normal Test Voltage 4-10VDC

Following are the Attached files for this product:

Fireye MEUV Series Amplifier Module Technnical Datasheet
