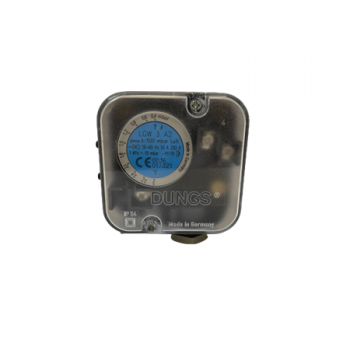

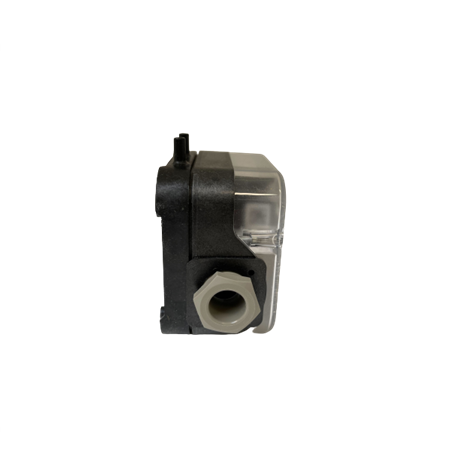

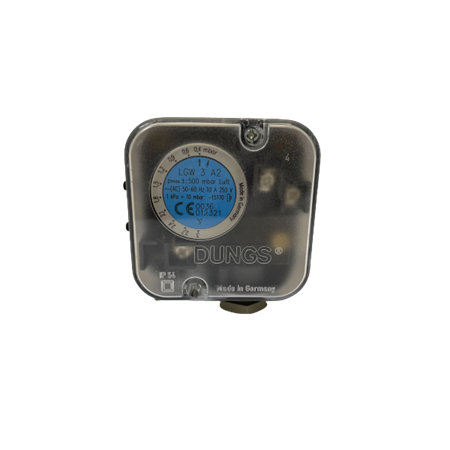

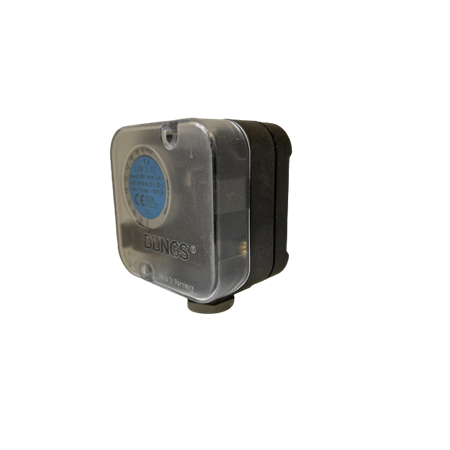

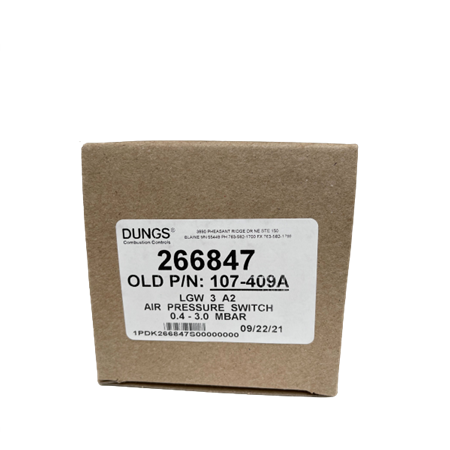

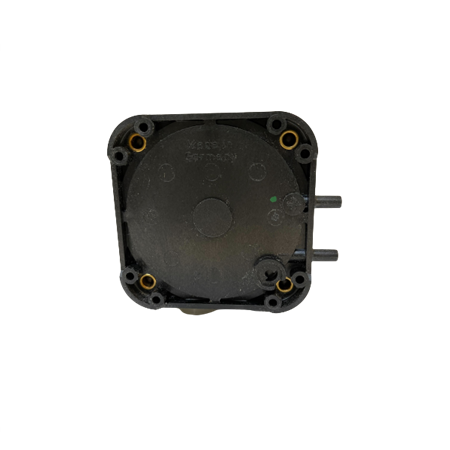

Dungs 107-409A Air Pressure Switch LGW-A2 Series 6A AT 230VAC LGW 3 A2 0.4 to 3 MBAR

Dungs 107-409A Air Pressure Switch LGW-A2 Series 6A AT 230VAC LGW 3 A2 0.4 to 3 MBAR
Images for general purposes only. Actual may be different than depicted.
Dungs 107-409A Air Pressure Switch LGW-A2 Series 6A AT 230VAC LGW 3 A2 0.4 to 3 MBAR

Dungs 107-409A Air Pressure Switch LGW-A2 Series 6A AT 230VAC LGW 3 A2 0.4 to 3 MBAR

SKU: 266847
In Stock 2
Rating:
$63.54 /ea
0
$0.00
0
$0.00
0
Differential pressure switches are adjustable pressure switches for automatic burner controls. They are suitable for switching a circuit on, off or over on changes in actual pressure value relative to the set reference value.  The reference value (switching point) is adjusted on a setting wheel provided with a scale. The differential pressure acts via the diaphragm against the force of the setting spring on the microswitch. The pressure switch operates without auxiliary power.  The control unit responds to differential pressure. If the set reference value (mbar) is exceeded or undershot, the cicuit is switched on, off or over.
Maximum Operating Pressure 7 PSI (500 mbar)
Enclosure Rating IP 54
Ambient Temperature Rating +5 F to +140 F (-15 C to +60 C)
Pressure Range 0.4 to 3 mbar
Contacts SPDT 6A @ 230 VAC 3A FLA
