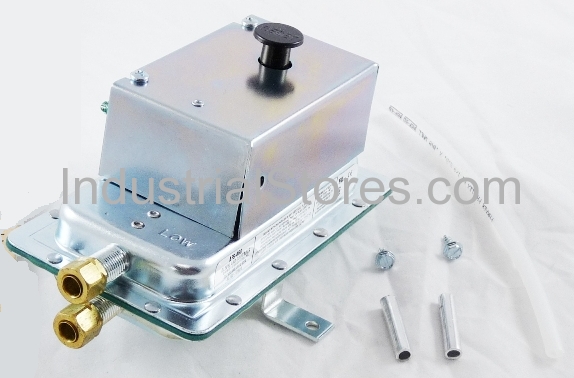

Cleveland Controls AFS-460-121 Pressure Sensing Switch

Cleveland Controls AFS-460-121 Pressure Sensing Switch
Images for general purposes only. Actual may be different than depicted.
Cleveland Controls AFS-460-121 Pressure Sensing Switch

Cleveland Controls AFS-460-121 Pressure Sensing Switch

SKU: AFS-460-121
In Stock 44
Rating:
$43.27 /ea
Qty of 10 - $40.82 /ea
Qty of 20 - $38.37 /ea
0
$0.00
0
$0.00
0
APPLICATIONS The Model AFS-460 is a general purpose proving switch designed to require manual operator reset following actuation. It can be used to sense positive, negative, or differential air pressure in HVAC and Energy Management applications which require operator interface. GENERAL DESCRIPTION & OPERATION The plated housing contains a diaphragm, a calibration spring and a snap-acting SPST-NC switch with manual reset button. The sample connections located on each side of the diaphragm accept 0.25" OD metallic tubing via the integral compression ferrule and nut. An enclosure cover protects the operator from accidental contact with the live switch terminal screws and the set point adjusting screw. The enclosure cover accepts a 0.5" conduit connection.
